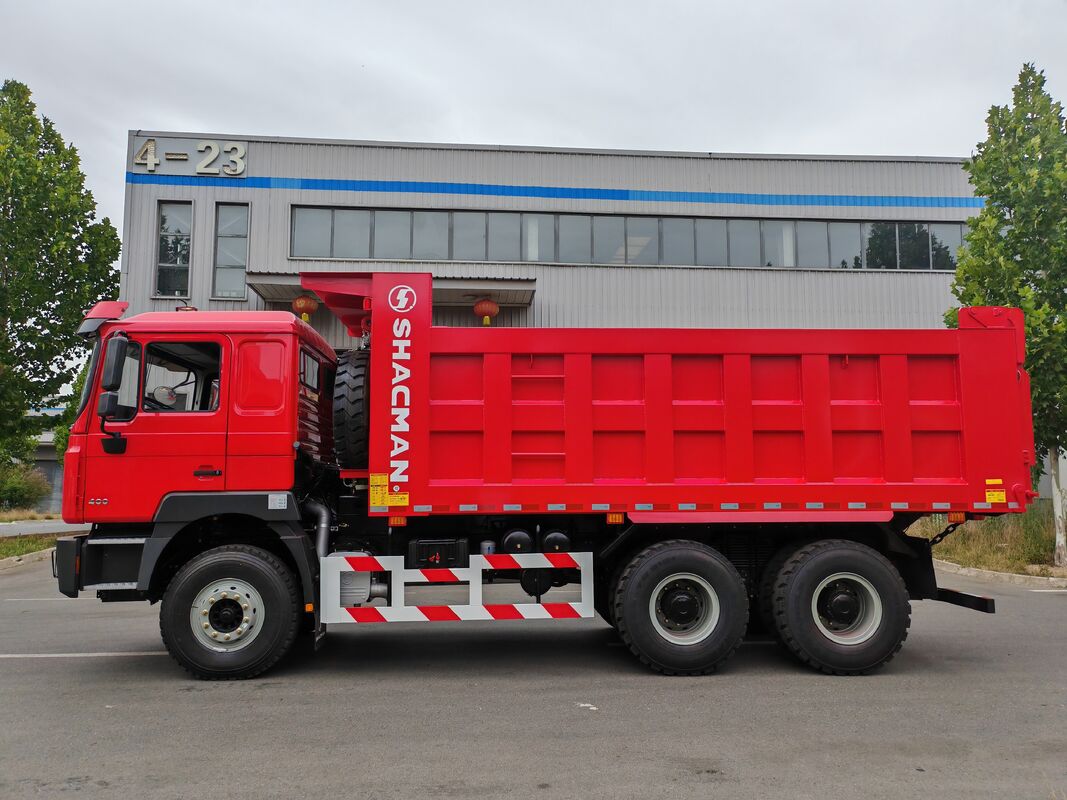

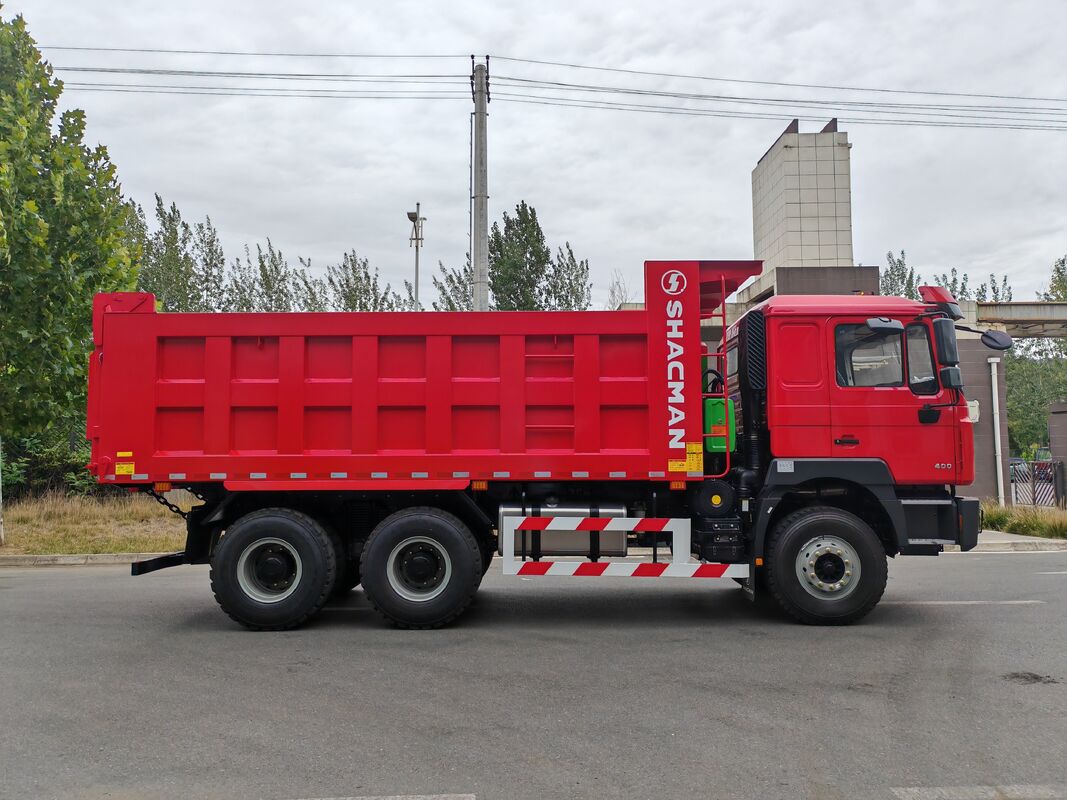

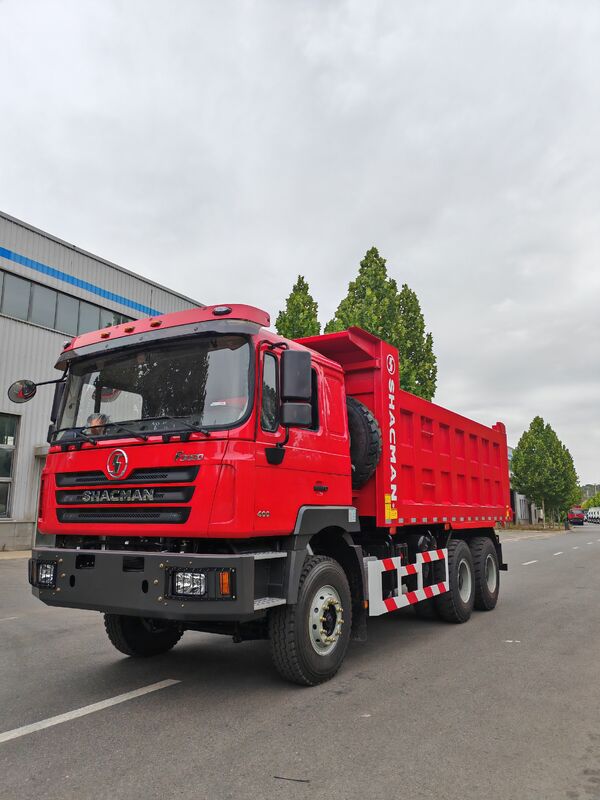

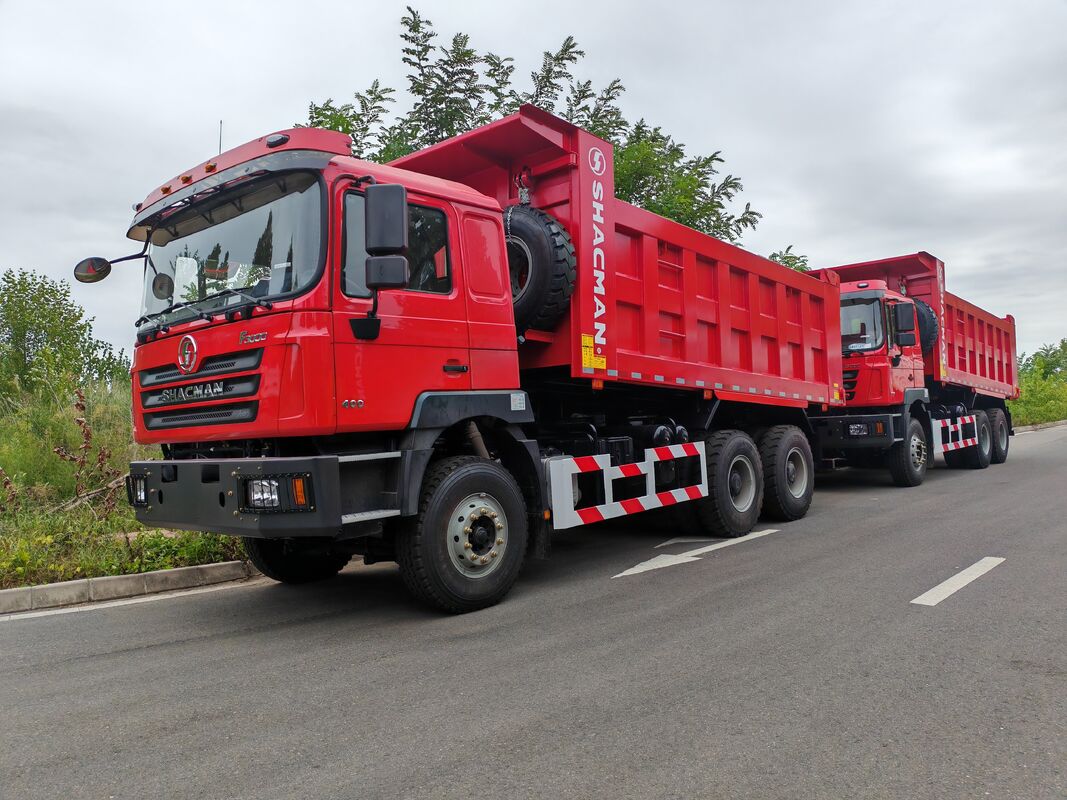

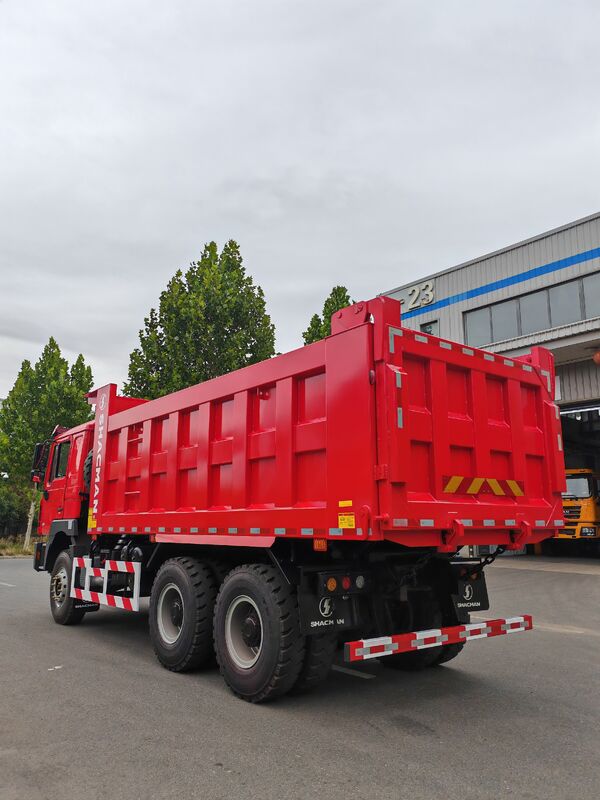

Name: SHACMAN F3000 6X4 Heavy Duty Dump Truck with 9.5T /2*16 T Axle 300L Fuel Tank and 3775+1400 mm Wheelbase
Brand: SHAAN XI HAN OCEAN CO . , LTD
SKU: f3000
Price: 1,000.00 USD
Availability: InStock

Rumah > Produk > Truk Dump Berat >

SHACMAN F3000 6X4 Heavy Duty Dump Truck with 9.5T /2*16 T Axle 300L Fuel Tank and 3775+1400 mm Wheelbase

9.5T /2*16 T Axle Heavy Duty Dump Truck

300L Fuel Tank Dump Truck

3775+1400 mm Wheelbase Tipper Truck

Tempat asal:

Shaanxi, Xian

Nama merek:

SHACMAN

Sertifikasi:

ISO 9001/CCC

Nomor model:

f3000

Hubungi Kami

Minta Kutipan

SHACMAN F3000 6X4 Heavy Duty Dump Truck with 9.5T /2*16 T Axle 300L Fuel Tank and 3775+1400 mm Wheelbase

Rincian Produk

MODEL:

SX3255DT364-Tugas berat

MESIN:

WP10.380E22

Penularan:

12JSD200T-B+QH50

Gandar:

9.5T /2*16 T Tahap ganda, rasio kecepatan-5.92

Dasar roda:

3775+1400 mm

Ban:

12.00R20

Tangki bahan bakar:

300L

Mencengkeram:

φ430 kopling pegas diafragma

Inlet Udara:

Filter udara biasa

Casis:

850×300（8+7）

penangguhan:

Pelat multi-lapisan depan /belakang pegas 4 pelat utama + 4 baut berbentuk u

Kabin:

Atasan datar berukuran sedang

Warna:

Neon Merah/Hijau Gunung Hijau/Bintang dan Bulan Biru/Aurora Putih/Klein Biru/Brandy

Menyoroti:

9.5T /2*16 T Axle Heavy Duty Dump Truck

300L Fuel Tank Dump Truck

3775+1400 mm Wheelbase Tipper Truck

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order

Harga

negotiable

Kemasan rincian

Paket telanjang, dengan lilin sebelum pengiriman.

Waktu pengiriman

45 hari kerja

Syarat-syarat pembayaran

T/T,L/C

Menyediakan kemampuan

5000 Unit/bulan

Produk terkait

Hubungi Kami

Hubungi sekarang

Deskripsi Produk

SHACMAN F3000 6X4 Heavy Duty Dump Truck

Model SX3255DT364 with 9.5T /2*16 T Axle, 300L Fuel Tank, and Medium-length Flat Top Cabin

Product Overview

The SHACMAN F3000 Dump Truck 6x4 380Hp Euro II features a WEICHAI diesel engine, delivering robust performance for heavy-duty applications.

Detailed Specifications

Model: SX3255DT364-heavy duty

Drive type: 6x4

Engine Brand: WEICHAI

Engine Model: WP10.380E22

Engine Power: 279kw / 380Hp

Gear box Brand: FAST

Gear box Model: 12JSD200T-B+QH50

Technical Parameters

Parameter	Specification
Model	SX3255DT364
Drive type	6x4
Gross Vehicle Weight	≤50
Wheelbase (mm)	3775+1400
Maximum speed (km/h)	45～60/80
Ground clearance	>314
Maximum torque (N.M)/rpm	1600 N*M
Displacement (L)	9.726 L
Emission standard	Euro II

Key Components

Gear box: FAST 12JSD200T-B+QH50
Clutch: φ430 Diaphragm spring clutch
Cooling: Domestic heat sink
Air inlet: Ordinary air filter
Brakes: Drum brake with double circuit air brake system
Steering: ZF8098 technology, circulating ball steering machine
Chassis: Parallel trapezoidal frame with variable section (850*300 (8+7))
Suspension: Multi-layered leaf springs (4 Main springs+4 U Bolts front and rear)
Axles: HANDE 9.5T front axle and 16T MAN Double Reduction Drive axle
Tires: 12.00R20
Fuel tank: 300L Aluminum tank
Electrics: 24V system with 165Ah Maintenance-free battery

Cab Features

SHACMAN F3000 Medium-length flat cab includes:

Hydraulic main seat
Four-point hydraulic suspension cab
Ordinary rearview mirror
Electronically controlled automatic constant temperature air conditioner
Electric window shaker
165Ah maintenance-free Battery
SHACMAN logo and full English branding

Product Advantages

Ergonomic design focused on driver comfort and convenience
Spacious, driver-centric cabin environment reduces fatigue on long hauls
Adjustable seats and easy-to-reach controls enhance operational efficiency
Excellent visibility for improved safety
