Name: SHACMAN F3000 6x4 Water Tank Truck with 300L Fuel Tank and 7.5T/2*13 Double Stage Axle
Brand: SHAAN XI HAN OCEAN CO . , LTD
SKU: f3000
Price: 2,517.00 USD
Availability: InStock

Rumah > Produk > Truk Tangki Air >

SHACMAN F3000 6x4 Water Tank Truck with 300L Fuel Tank and 7.5T/2*13 Double Stage Axle

300L Fuel Tank Water Truck

7.5T/2*13 Double Stage Axle Tanker Truck

4375+1400mm Wheelbase Water Tank Truck

Tempat asal:

Shaanxi, Xian

Nama merek:

SHACMAN

Sertifikasi:

ISO9001/CCC

Nomor model:

f3000

Hubungi Kami

Minta Kutipan

SHACMAN F3000 6x4 Water Tank Truck with 300L Fuel Tank and 7.5T/2*13 Double Stage Axle

Rincian Produk

Modle:

SX5255GSSDN434

Mesin:

WP10.300E22

Penularan:

RTD-11509C dengan ekstraktor flensa QH50

Gandar:

7.5T/2*13 Gandar tahap ganda， Kecepatan gandar-5.262

Dasar roda:

4375+1400mm

Ban:

12.00R20

Tangki bahan bakar:

300L

Mencengkeram:

φ430 kopling pegas diafragma

Inlet Udara:

Filter udara biasa

Casis:

850×300（8+5）

penangguhan:

Depan/belakang Pegas pelat multilapis 2 pelat utama + 2 baut berbentuk U

Kabin:

Atasan datar berukuran sedang

Warna:

Neon Merah/Hijau Gunung/Biru Berbintang/Putih Aurora/Biru Klein/Merah Anggur

Menyoroti:

300L Fuel Tank Water Truck

7.5T/2*13 Double Stage Axle Tanker Truck

4375+1400mm Wheelbase Water Tank Truck

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order

Harga

negotiable

Kemasan rincian

Paket telanjang, dengan lilin sebelum pengiriman.

Waktu pengiriman

45 hari kerja

Syarat-syarat pembayaran

T/t, l/c

Menyediakan kemampuan

5000 unit

Produk terkait

Hubungi Kami

Hubungi sekarang

Deskripsi Produk

SHACMAN F3000 Water Tank Truck 6x4 300 EuroII White

Product Specifications

Model: SX5255GSSDN434

Drive type: 6x4

Weight: Gross Vehicle Weight ≤50

Water Tank Truck Parameters
Model	SX5255GSSDN434
Drive type	6x4
Weight	Gross Vehicle Weight ≤50
Dimensions	Wheelbase/(mm) 4375+1400
Performance	Maximum speed/(km/h) 50～70/90
Ground clearance	>314
Engine Brand	WEICHAI
Engine Model	WP10.300E22
Power/(kw/HP)	220w / 300Hp
Maximum torque / (N.M)/rpm	1240 N*M
Displacement/(L)	9.726 L
Emission standard	Euro/ II
Gear box Brand	FAST
Gear box Model	RTD-11509C with QH50 flange extractor
Clutch Type	φ430 Diaphragm spring clutch
Cooling Type	Domestic heat sink
Air inlet Type	Ordinary air filter
Brakes Type	Drum brake
Service brake	Double circuit air brake
Park brake	Rear wheel spring brake
Auxiliary brake	WEVB engine exhaust brake
Steering Type	ZF8098 technology, circulating ball steering machine
Chassis Type	Parallel trapezoidal frame with variable section
Dimensions/(mm)	850×300(8+5)

Key Features

300 horsepower (Hp) Euro II compliant engine for reduced environmental impact
Ergonomic cab design with driver comfort features including hydraulic main seat and four-point hydraulic suspension
Electronically controlled automatic constant temperature air conditioner
Electric window controls and modern instrumentation
300L aluminum fuel tank capacity
24V electrical system with 165Ah maintenance-free battery

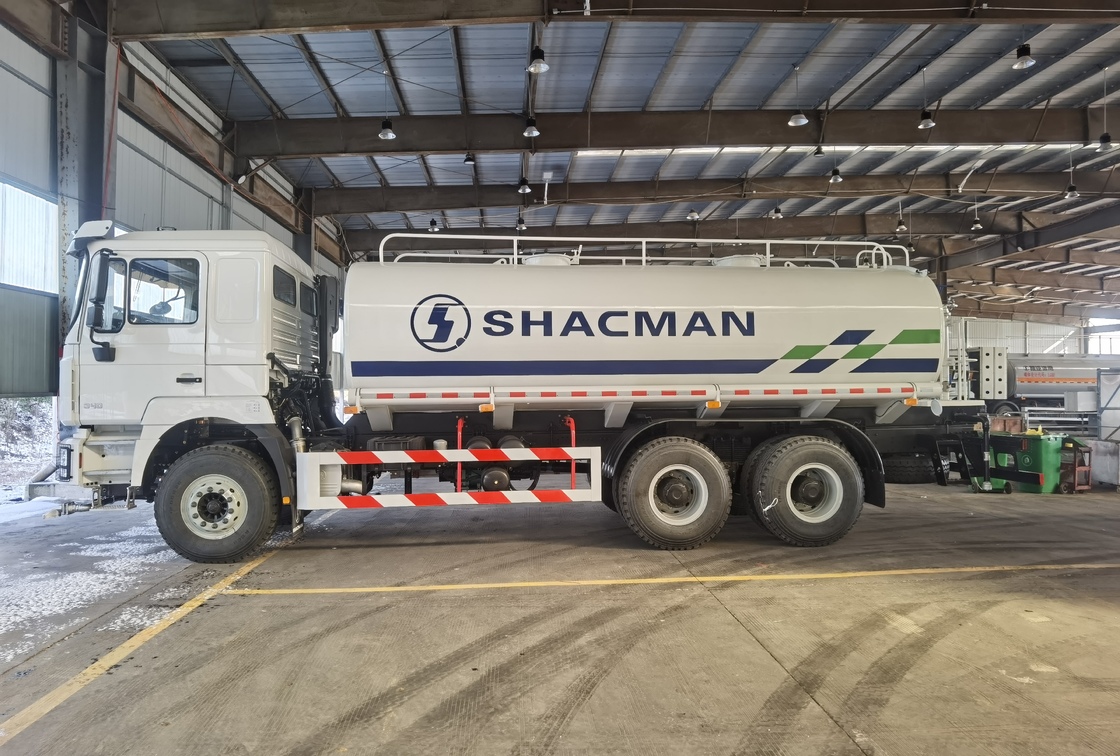

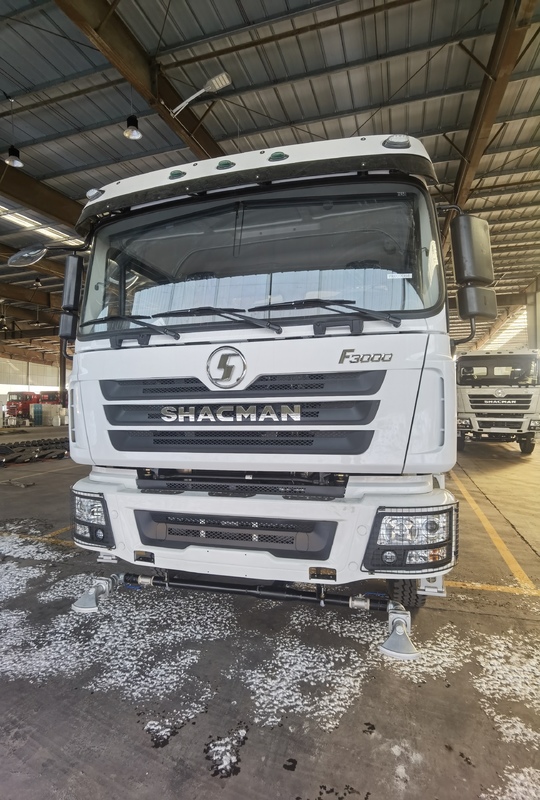

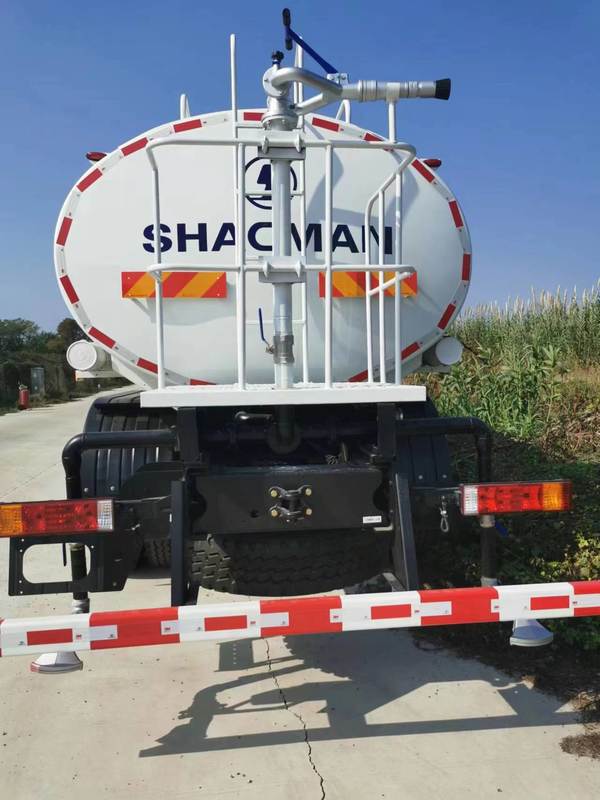

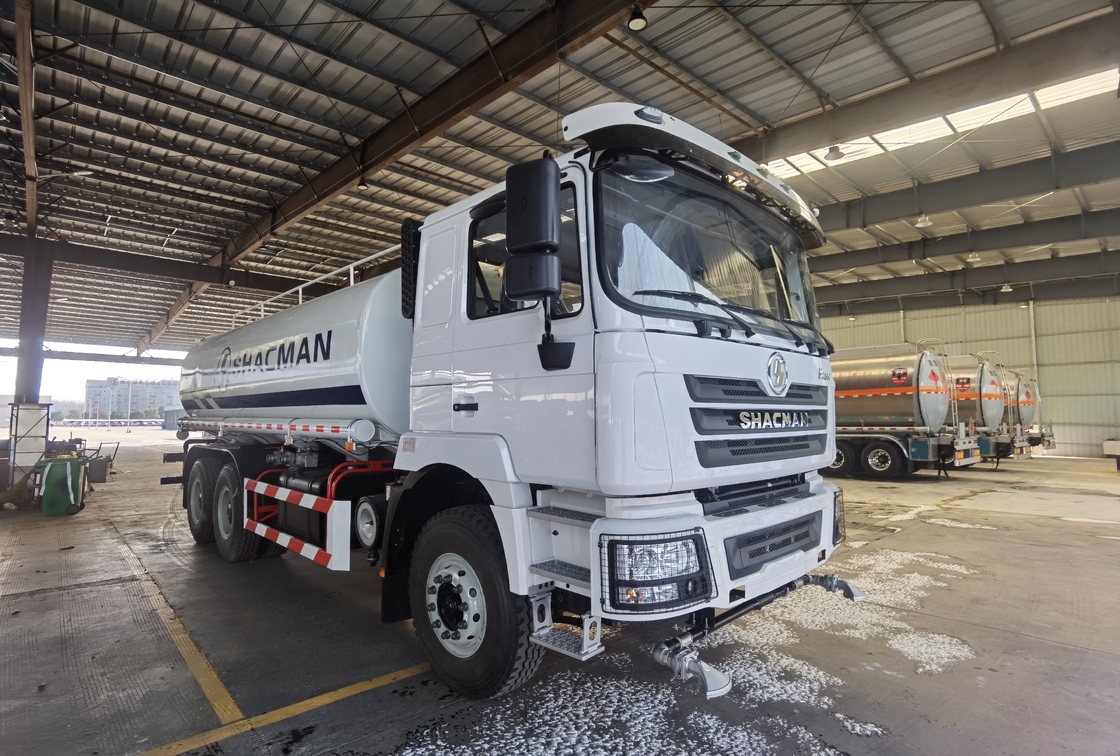

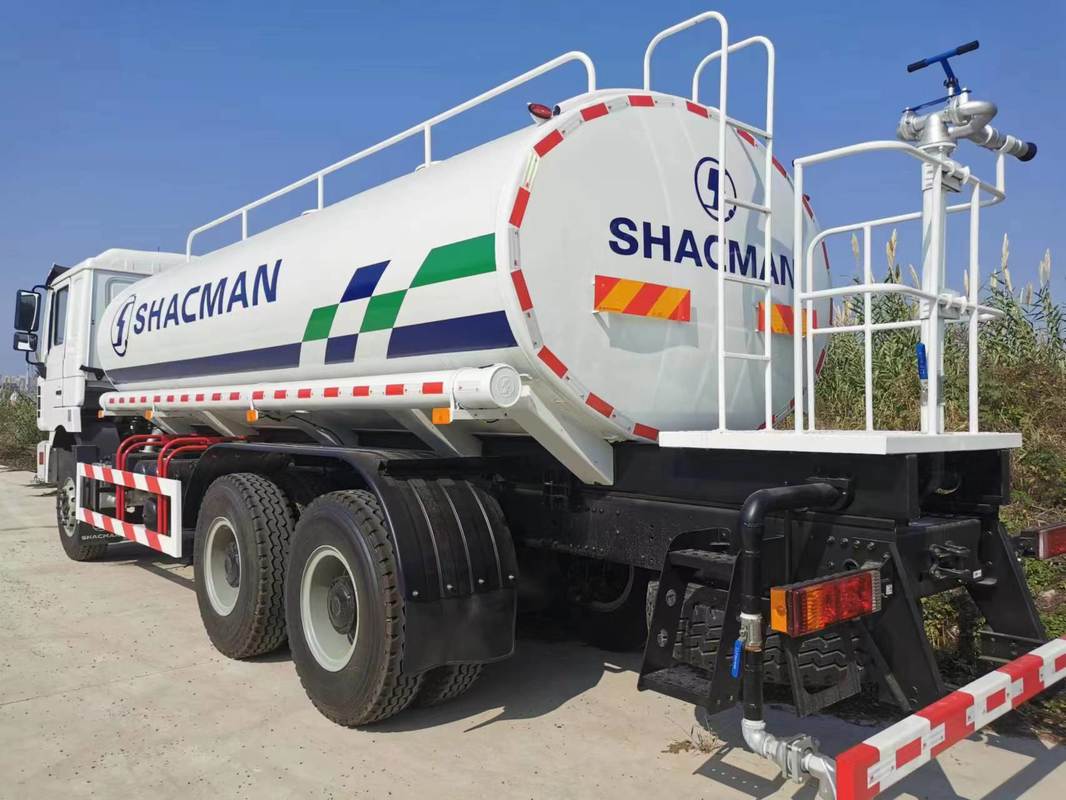

Product Image

Shacman H3000 3000 Gal truk air

Shacman Blue Water Truck

Tangki air truk SHACMAN F3000
